Linked DES for connection to the DriveLock Cloud

The linked DES in cloud mode acts as an intermediary to connect agents to the DriveLock Cloud when there is no internet connection.

It accomplishes three tasks in the process:

1. It forwards requests from the agents to the cloud

2. It caches data from the central DES

3. It provides an MQTT broker

   • Allows agents to be controlled remotely via agent control

   • Allows the central DES in the cloud to reach the linked DES

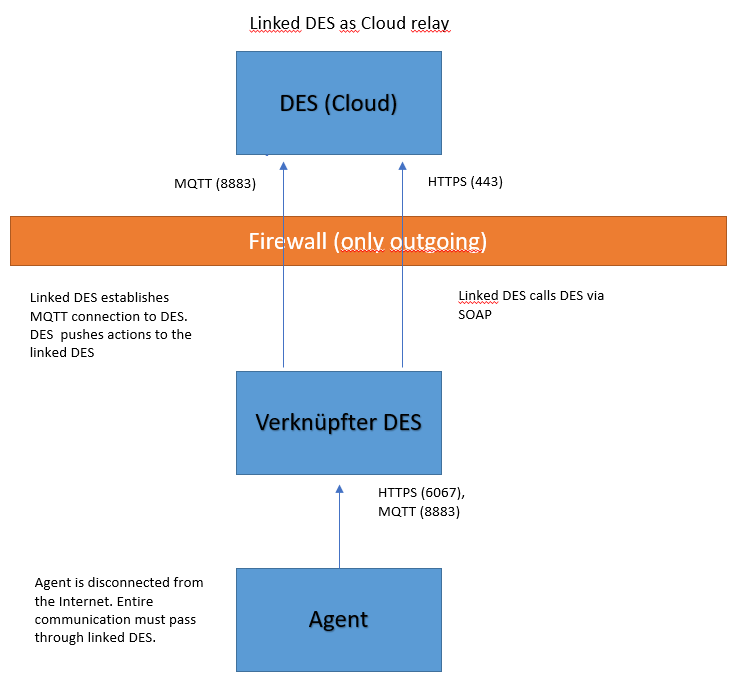

Network diagram:
